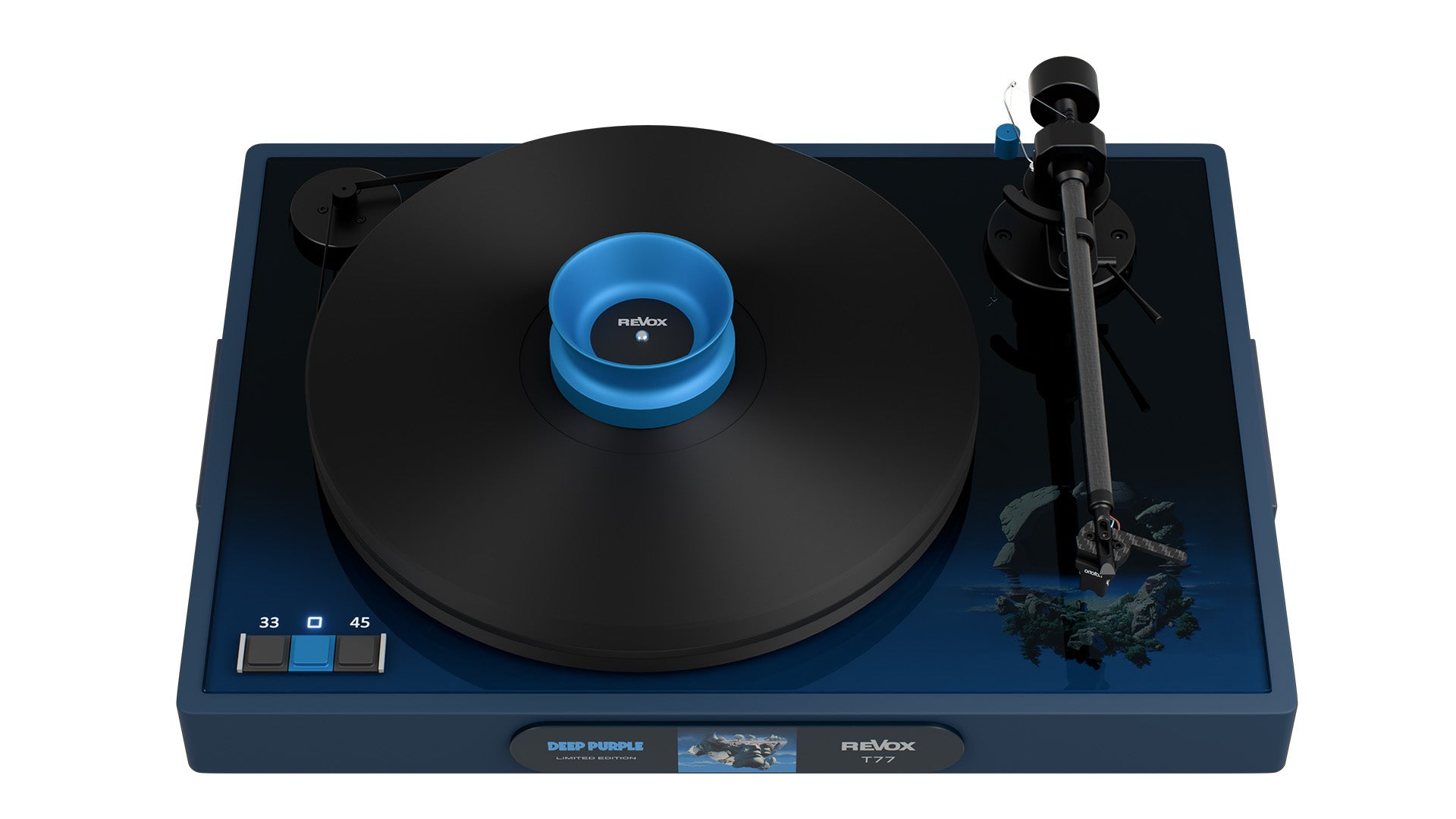

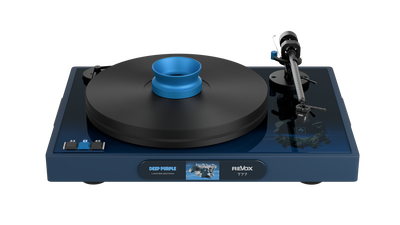

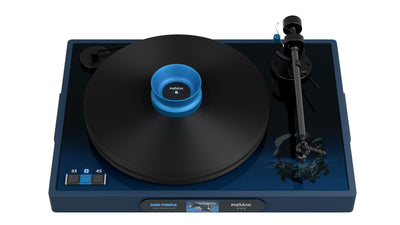

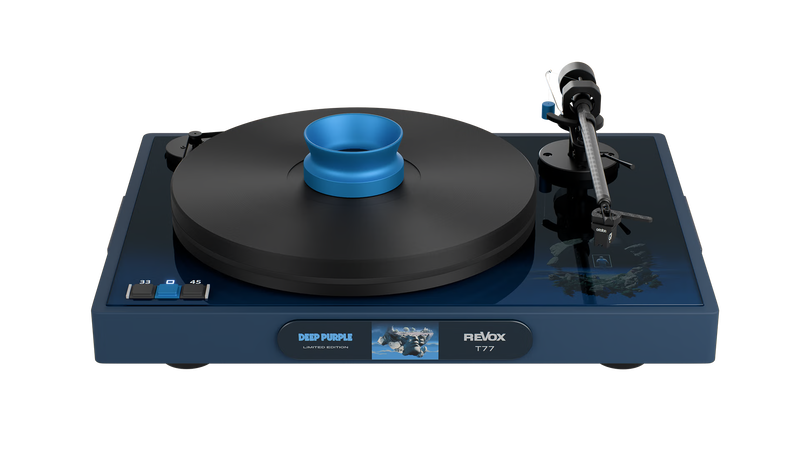

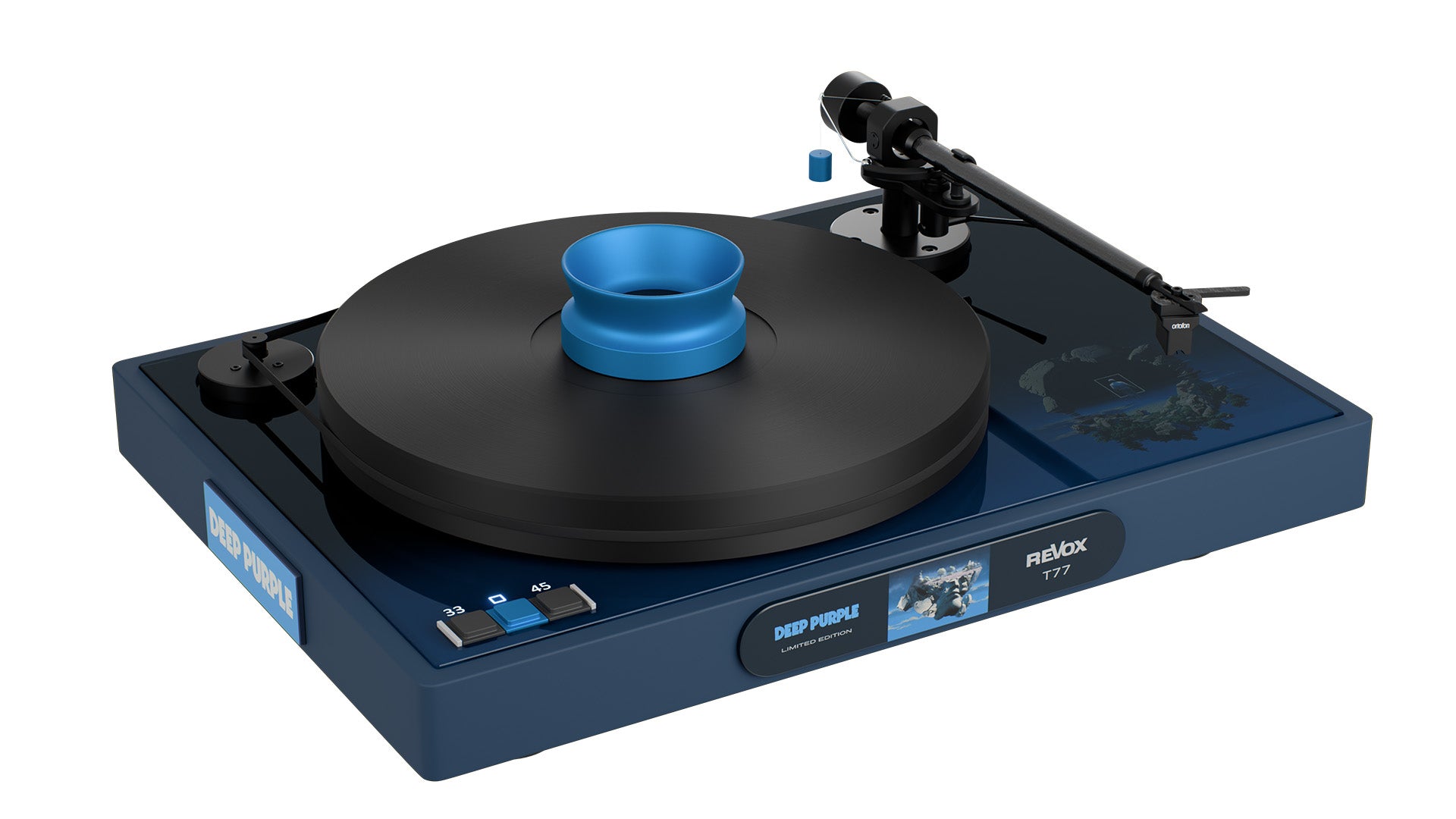

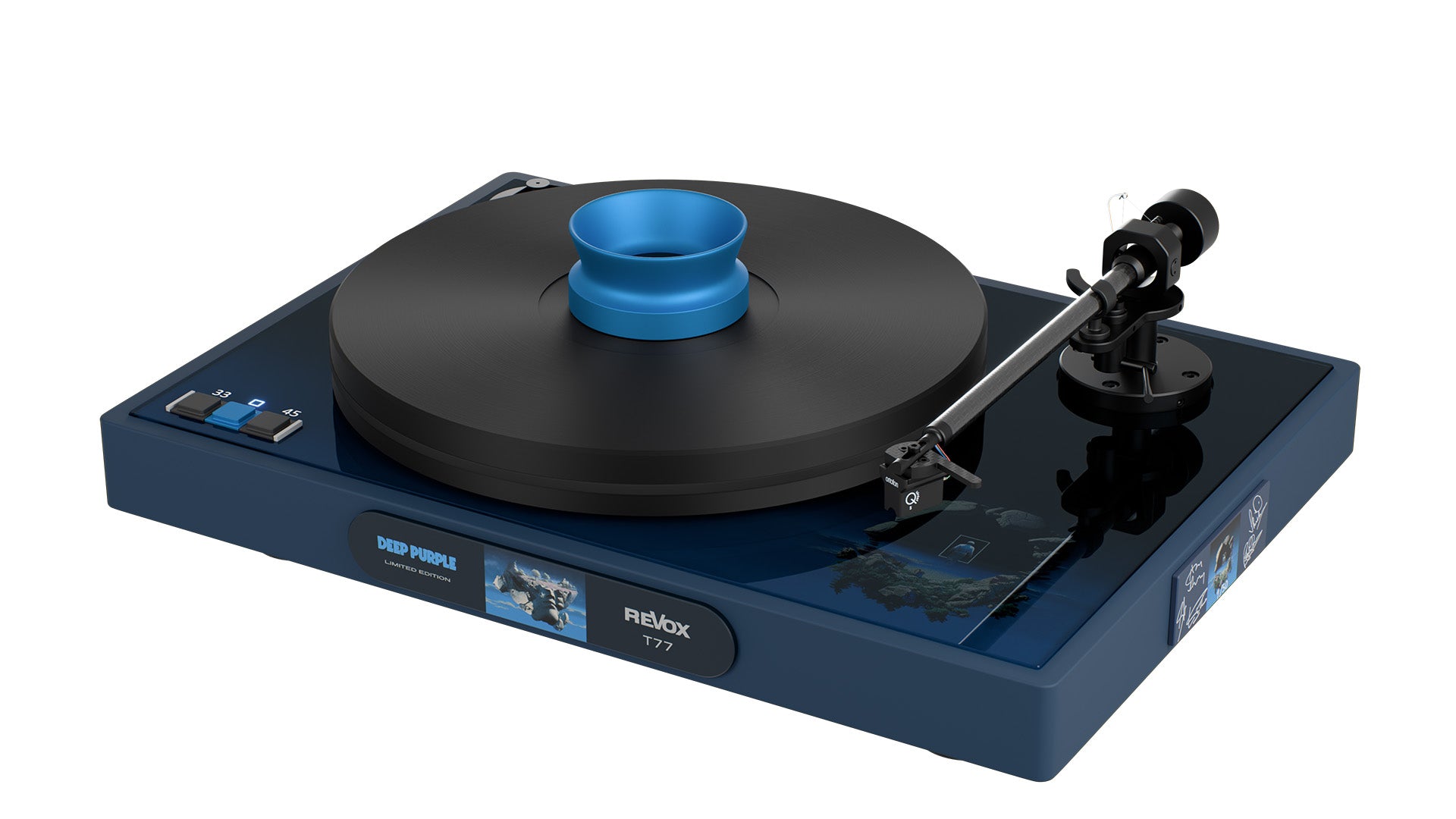

T77 Turntable - Deep Purple Limited Edition

Your Advantages

  • Faithful studio sound quality
  • Audiophile turntable
  • Limited to 50 pieces worldwide
  • In exclusive Deep Purple design, hand-signed by Deep Purple
  • MC cartridge Ortofon Quintet Black S
  • Integrated MC phono preamplifier with extensive adjustment options
  • XLR connectors, balanced audio outputs, studio level
  • Switch for home and studio systems via DIL switch
  • Electronic speed control
  • Neutrik XLR-RCA adapter (included)
  • Anti-skating weight (blue color)
  • Platter weight in NAB adapter look
  • High-end absorber feet bFly PolarX
  • Made in Germany
T77 Turntable - Deep Purple Limited Edition

Applications

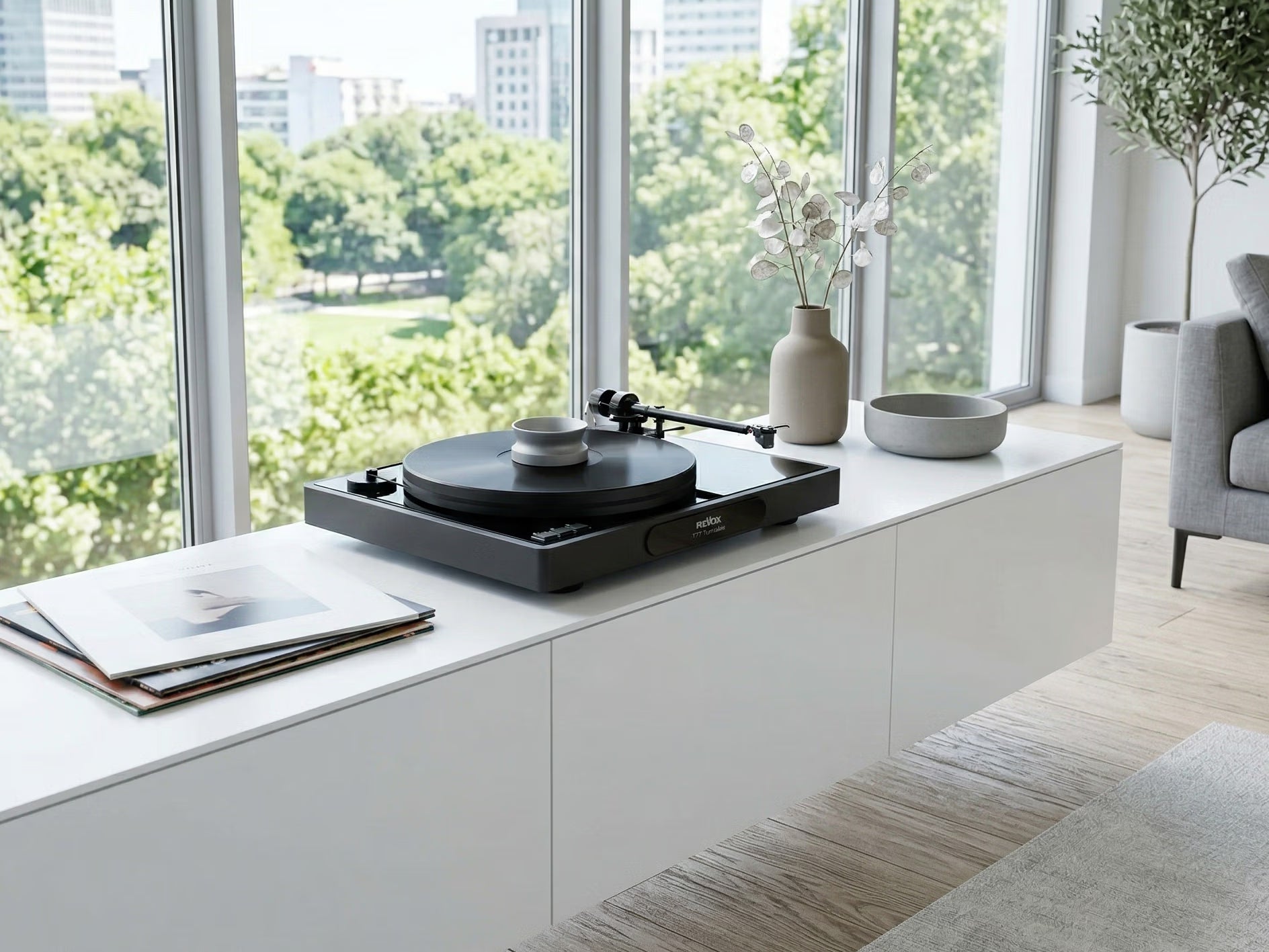

  • Listening to music - in the living room

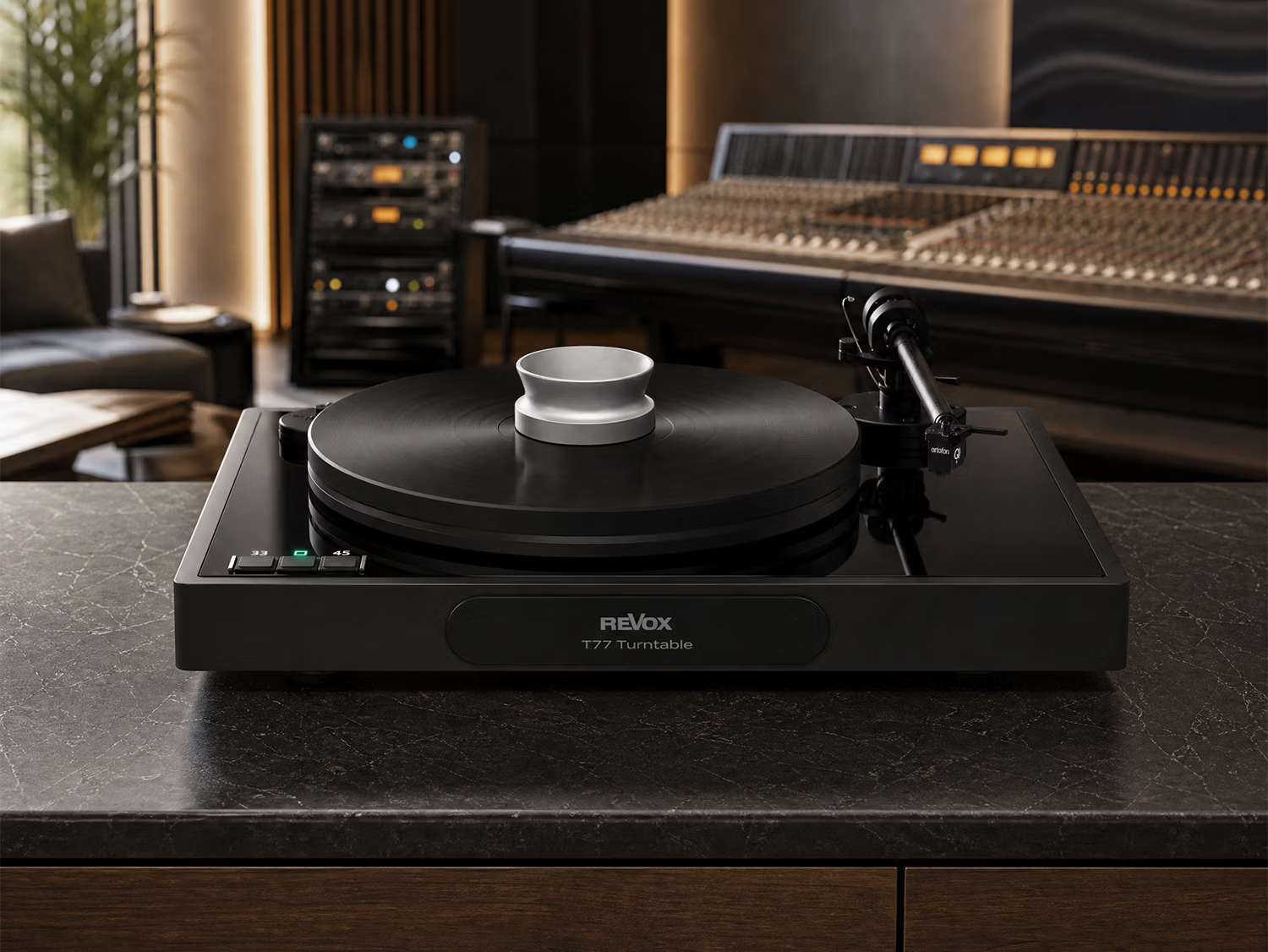

  • Studio use for playback
  • Players for integration into multiroom systems

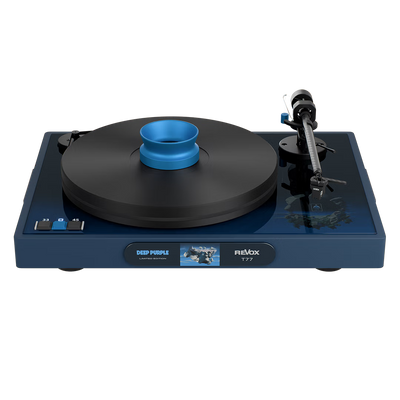

Combinations



Documents & Information



Width

470 mm

Height

156 mm

Depth

336 mm

Weight

10.5 kg

Further detailed information can be found here: Technical Data Sheet T77.

Good to know - T77 Turntable - Deep Purple Limited Edition

Certificate Deep Purple T77

After ordering, you will receive a certificate.

2-year warranty (extended to 3 years if the product is registered online).

Regarding the Revox T77 Turntable

A highlight of the T77 turntable is its unique, integrated MC phono preamplifier. The integration of the preamplifier allows for the best and shortest connection between the cartridge and the preamplifier, thus leading to the highest signal quality.

The music signal from the T77 is output in the form of an analog, balanced studio format via XLR connections. If the connecting device does not have XLR inputs, the audio signal can be output unbalanced using the XLR-RCA adapters included in the scope of delivery.

To ensure the best sound quality, absolute speed accuracy is essential. For this purpose, the T77 features a high-precision electronic PLL speed control via a contactless optical sensor.

The T77 turntable comes with the high-quality MC cartridge Ortofon Quintet Black S: The Quintet Black S is equipped with a Nude Shibata diamond, which is considered one of the best available stylus profiles, mounted on a high-performance Sapphire cantilever.

Additionally, the T77 is equipped with the Revox turntable weight in NAB Adapter look (red color), which ensures the record rests firmly on the platter. The T77's platter is made of black POM (Polyoxymethylene), so no additional mat is necessary.

Another highlight is the high-end bFly PolarX absorber feet. With the built-in copper conductor, the sound becomes even more natural.
The tonearm is made from high-quality metals, with the tonearm tube crafted from carbon fiber. The tonearm wiring is directly connected to the preamplifier via hand soldering.

Operation is carried out using high-quality full aluminum buttons.

For protection of the turntable, a cover made of solid acrylic glass can be attached (included in the scope of delivery).
