Multiuser I/O-HDMI Module

I/O-HDMI module for expanding the M30 Multiuser Amplifier with sensitive audio inputs (analog, optical) and an HDMI ARC input, as well as a configurable analog audio output.

I/O-HDMI module for expanding the M30 Multiuser Amplifier with sensitive audio inputs (analog, optical) and an HDMI ARC input, as well as a configurable analog audio output.

Multiuser I/O-HDMI Module

Multiuser I/O-HDMI Module

I/O-HDMI module for expanding the M30 Multiuser Amplifier with sensitive audio inputs (analog, optical) and an HDMI ARC input, as well as a configurable analog audio output.

Multiuser I/O-HDMI Module

Multiuser I/O-HDMI Module

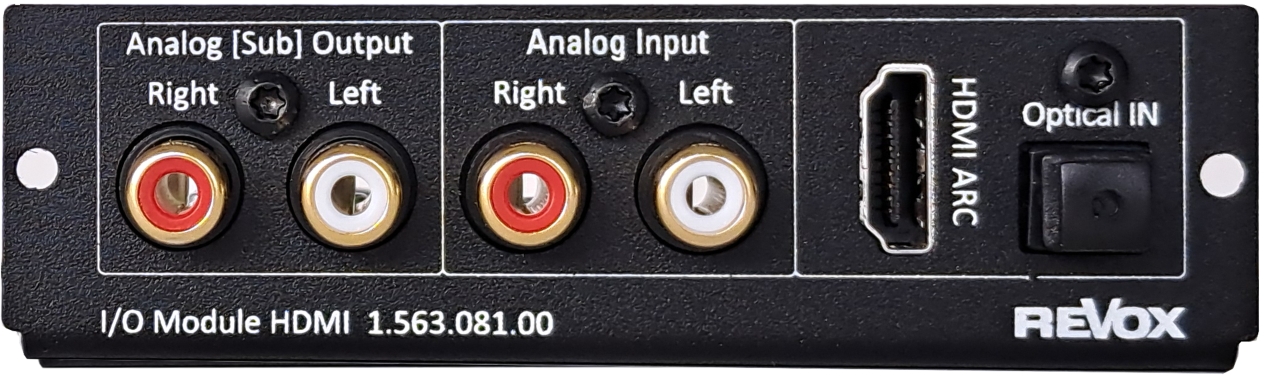

The I/O-HDMI Module is located in the modular slot of the M30 Multiuser Amplifier and expands the amplifier with sensitive audio inputs (analog, optical) and an HDMI ARC input, as well as a configurable analog audio output. The signal from the inputs can be distributed to all rooms of the multiuser system. The analogue output with DSP equalizing is used for expansion with multi-channel amplifiers in very large rooms or high-performance amplifiers for power-intensive speakers.
The HDMI ARC input supports the CEC protocol, which can also be adapted to requirements in the Multiuser Configurator.

Benefits

HDMI ARC input with factory-set CEC triggers, which can be customized in the Configurator
audio-sensitive analogue and optical input
analogue output with separate DSP
TV sound is available to the entire multiuser system (every user / every room)
TV sound volume can be controlled on the M30 Multiuser Amplifier with the original TV remote control

Benefits

HDMI ARC input with factory-set CEC triggers, which can be customized in the Configurator
audio-sensitive analogue and optical input
analogue output with separate DSP
TV sound is available to the entire multiuser system (every user / every room)
TV sound volume can be controlled on the M30 Multiuser Amplifier with the original TV remote control

Technical details

dimensions

weight (kg):0.082
depth (mm):27
height (mm):7
width (mm):20

inputs

1x analog (cinch stereo), 1x optical (TOS Link), 1x HDMI ARC

Data format (optical)

16, 20, 24 bit PCM - SPDIFF up to 96 kHz

Datenformat (HDMI)

16, 20, 24 bit PCM - SPDIFF up to 192 kHz

Max. Input level (analog input)

700 mV (for full modulation)

Analog output (preout)

max. 2.0 volts rms with DSP equalizer

PreOut modes

Fix (Line Level), Variable (incl. tone control), Headphones (variable, without mute)

DSP settings PreOut

Presets for Revox loudspeakers, 1x high pass, 8x Parametric EQ
